  1. May 3, 2014 #1
    CJsurf

    CJsurf Well-Known Member

    1,552
    Apr 28, 2014

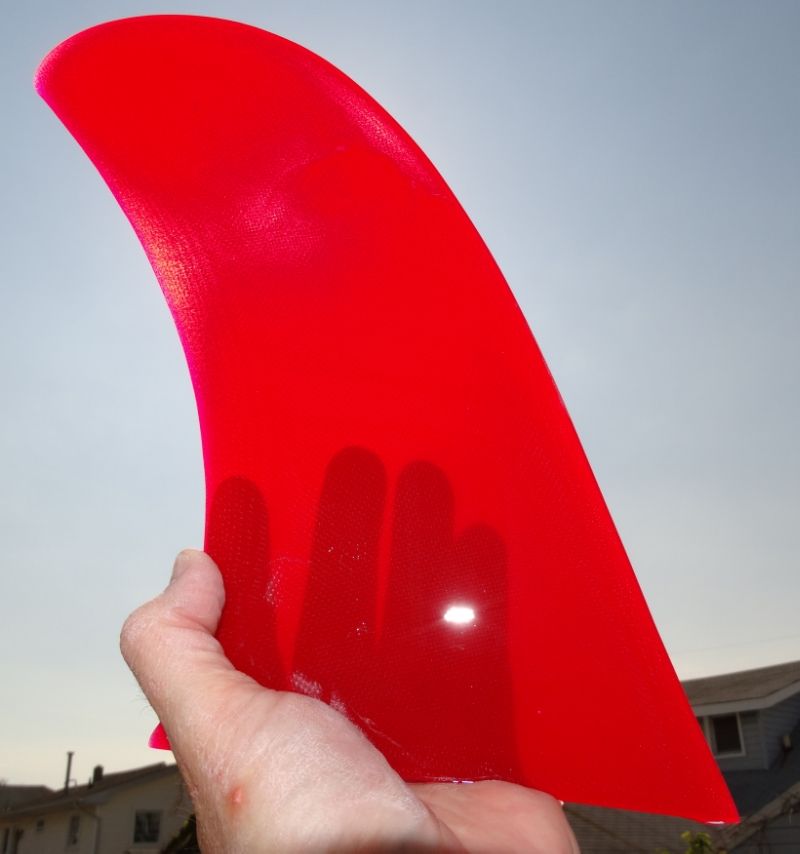

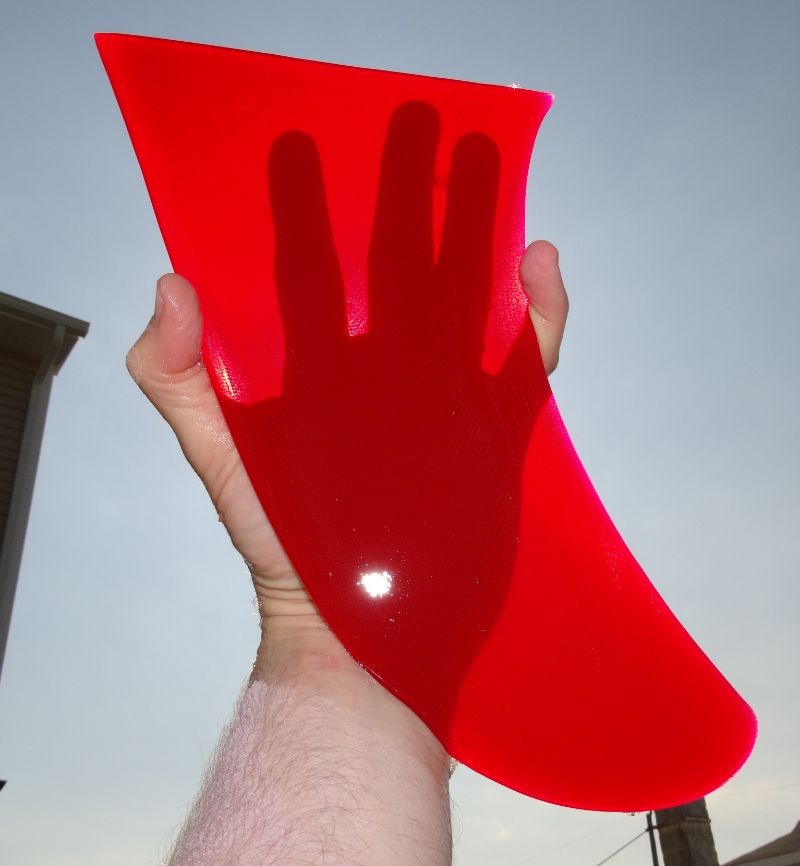

    I have a longboard in the works.....first one I've made since 1995. This time I decided to make my own glass on fin. Layed up a panel this morning. 34 layers thick. Shaped it this afternoon. Came out absolutely perfect. Very fun little project. I may be making shortboard fins in the future. I can see how this could become addicting.

    By the way, any spots in the pictures are not in the fin. I doused the fin in water and took pictures quickly to capture the effect of what it will look like glossed on a board.

    [​IMG]

    [​IMG]

    [​IMG]

    CJsurf, May 3, 2014
    CJsurf, May 3, 2014
  3. May 3, 2014 #2
    Agabinet

    Agabinet Well-Known Member

    309
    May 3, 2012
    That's a big honkin' fin! what board will it go on?

    Agabinet, May 3, 2014
    Agabinet, May 3, 2014

  5. May 3, 2014 #3
    CJsurf

    CJsurf Well-Known Member

    1,552
    Apr 28, 2014
    Its a 9.5" fin. I will be shaping a little noserider to put it on next week. Stay tuned.

    CJsurf, May 3, 2014
    CJsurf, May 3, 2014
  6. May 4, 2014 #4
    njsurfer42

    njsurfer42 Well-Known Member

    3,550
    Nov 9, 2009
    cj, that's killer! looks amazing, man. can we get a shot of the foil across the bottom before you put it on?

    njsurfer42, May 4, 2014
    njsurfer42, May 4, 2014
  7. May 4, 2014 #5
    LBCrew

    LBCrew Well-Known Member

    6,024
    Aug 12, 2009
    Beautiful.... nice work!

    LBCrew, May 4, 2014
    LBCrew, May 4, 2014
  8. May 14, 2014 #6
    CJsurf

    CJsurf Well-Known Member

    1,552
    Apr 28, 2014
    [​IMG]

    CJsurf, May 14, 2014
    CJsurf, May 14, 2014
  9. May 14, 2014 #7
    capecodcdog

    capecodcdog Well-Known Member

    1,174
    Jun 22, 2012
    Yes.. Very nice. More pix of other views when board is completed would be appreciated.

    capecodcdog, May 14, 2014
    capecodcdog, May 14, 2014
  10. May 14, 2014 #8
    yankee

    yankee Well-Known Member

    9,092
    Sep 26, 2008
    Sweet. gnome, take a page from this shaper's book of excellence

    yankee, May 14, 2014
    yankee, May 14, 2014
  11. May 14, 2014 #9
    dudeclimbing

    dudeclimbing Well-Known Member

    263
    Apr 16, 2013
    Nice work! Looks fast in red.

    dudeclimbing, May 14, 2014
    dudeclimbing, May 14, 2014
  12. May 16, 2014 #10
    Roy Stuart

    Roy Stuart Well-Known Member

    1,514
    Jan 27, 2013
    You appear to be trolling for a critique of the red fin.

    so... the chord ratio is too low and the foil looks to have a huge flat area which drastically reduces performance.

    Roy Stuart, May 16, 2014
    Roy Stuart, May 16, 2014
  13. May 17, 2014 #11
    LBCrew

    LBCrew Well-Known Member

    6,024
    Aug 12, 2009
    I can't tell without feeling it or seeing a cross section. Aesthetically, though, I think she's a beauty... especially on that yellow bottom.

    LBCrew, May 17, 2014
    LBCrew, May 17, 2014
  14. May 19, 2014 #12
    CJsurf

    CJsurf Well-Known Member

    1,552
    Apr 28, 2014
    Finally got back to work on this project yesterday. Got everything sanded out. Ready for pinlines and gloss coat. I'll get some good pictures and post once its complete.

    PS. I can assure everyone that the fin is properly foiled.

    Last edited: May 19, 2014
    CJsurf, May 19, 2014
    CJsurf, May 19, 2014
  15. May 19, 2014 #13
    Roy Stuart

    Roy Stuart Well-Known Member

    1,514
    Jan 27, 2013

    You did say that it's 'perfect'.

    Anyway the cross section can be seen at the base, and the thickness and chord ratio can be estimated via the same method and the number of layers used.

    .

    Roy Stuart, May 19, 2014
    Roy Stuart, May 19, 2014
  16. May 19, 2014 #14
    CJsurf

    CJsurf Well-Known Member

    1,552
    Apr 28, 2014
    Had I taken a picture of the fin dry you would have clearly seen the foiling in the layers of cloth.......I wet it with soapy water so I could capture what it would look like glassed and glossed on a board.

    CJsurf, May 19, 2014
    CJsurf, May 19, 2014
  17. May 20, 2014 #15
    Roy Stuart

    Roy Stuart Well-Known Member

    1,514
    Jan 27, 2013
    More pictures?

    Roy Stuart, May 20, 2014
    Roy Stuart, May 20, 2014
  18. May 20, 2014 #16
    CJsurf

    CJsurf Well-Known Member

    1,552
    Apr 28, 2014
    I posted all I've got for now. The board is glassed and sanded. I've got to do the pin lines and gloss coat. Then I will be taking pics. I'll wrap this board up sometime in the next week.

    CJsurf, May 20, 2014
    CJsurf, May 20, 2014
  19. May 20, 2014 #17
    MFitz73

    MFitz73 Well-Known Member

    2,173
    Aug 21, 2010
    well if anyone would know about making something with reduced performance, it'd be you Roy!!! lol. I think the fin looks well within suitable shape for a longboard/funboard. its not like that board is ment to be slashing and gashing up and down the face. Just a straight shooter, down the line runner like your boards, Roy.

    MFitz73, May 20, 2014
    MFitz73, May 20, 2014
  20. May 20, 2014 #18
    ClemsonSurf

    ClemsonSurf Well-Known Member

    2,220
    Dec 10, 2007
    And boom goes the dynamite.

    ClemsonSurf, May 20, 2014
    ClemsonSurf, May 20, 2014
  21. May 26, 2014 #19
    CJsurf

    CJsurf Well-Known Member

    1,552
    Apr 28, 2014

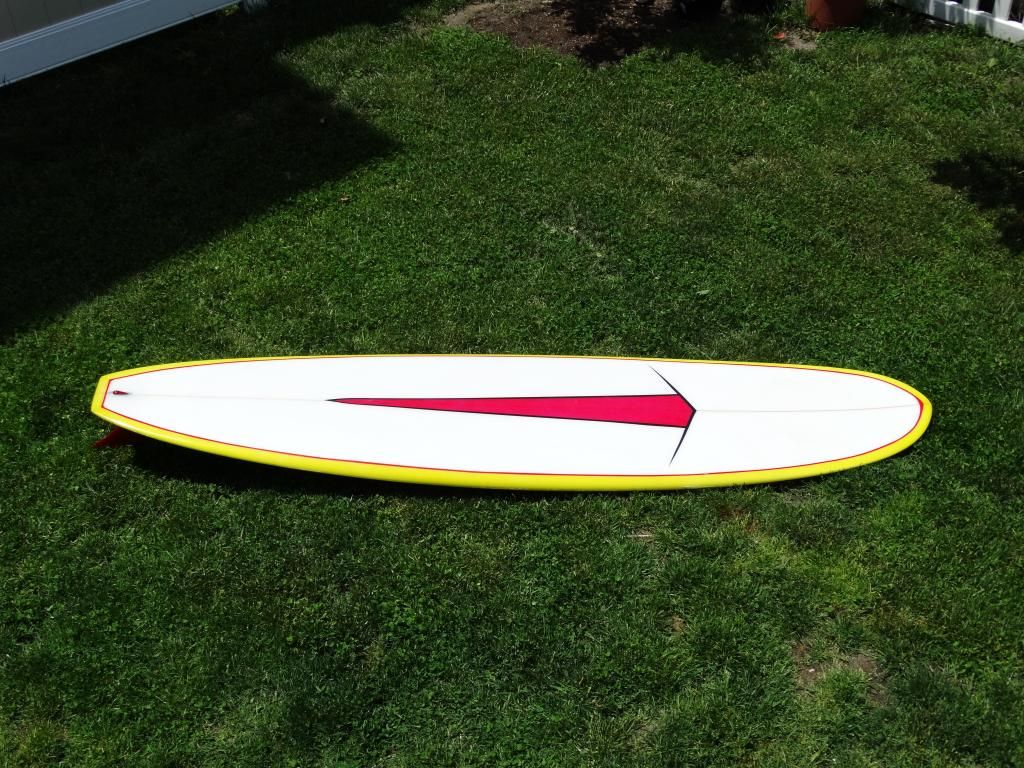

    Putting the finishing touches on this build.

    [​IMG]

    [​IMG]

    CJsurf, May 26, 2014
    CJsurf, May 26, 2014
  22. May 26, 2014 #20
    LBCrew

    LBCrew Well-Known Member

    6,024
    Aug 12, 2009
    Cool... looks like a bleeding gash

    LBCrew, May 26, 2014
    LBCrew, May 26, 2014
